Hardware

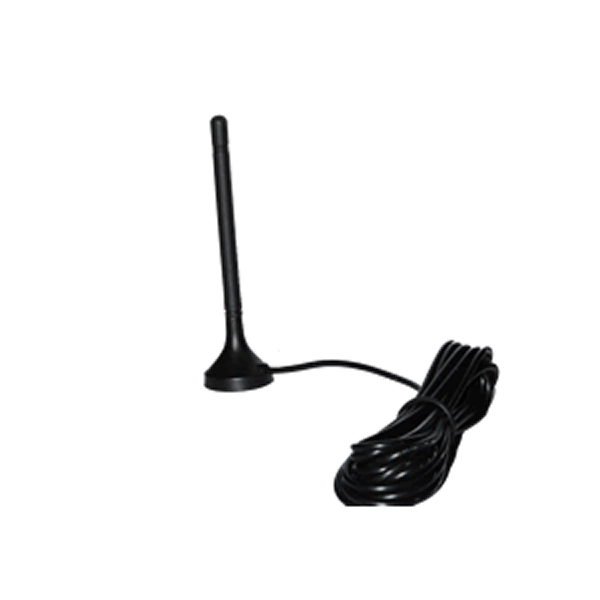

Fullband FB4GMAG3 Mini Mag Mount 4G Antenna 3dBi Peak Gain
£9.00 inc VAT
£7.50 ex VAT
Fullband FB4GMAG3 4G Magnetic Mount LTE Antenna with 2.5m cable and SMA male connector The FB4GMAG3 is a Fullband 4G antenna suitable for use with our range of 4G routers. It covers the full 2G, 3G and 4G spectrum used in the UK (800, 900, 1800, 2100 and 2600Mhz).
Next-working-day dispatch: order before 1pm, Mon-Fri. Orders placed after 1pm are dispatched the next working day.
Overview
Fullband FB4GMAG3 4G Magnetic Mount LTE Antenna with 2.5m cable and SMA male connector
The FB4GMAG3 is a Fullband 4G antenna suitable for use with our range of 4G routers. It covers the full 2G, 3G and 4G spectrum used in the UK (800, 900, 1800, 2100 and 2600Mhz). This fullband antenna has a 3dBi peak gain and is supplied with 2.5m long cable and SMA male connector.
NB : THIS IS AN INDOOR 4G ANTENNA
Technical Specification
Frequency Range : 700-960 mhz and 1710-2600Mhz
VSWR : <2.0
Gain : 3dBi Peak
Polarization : vertical
Rated Power : 50W
Input Impedence : 50 Ohm
Antenna Length : 113mm
Base diameter : 29mm
Cable : RG174, 2.5m long
Connector : SMA Male
Weight : 55g
This is a ground plane dependant antenna and will need to be mounted on a suitable metal surface to achieve peak performance.
